EM-6002

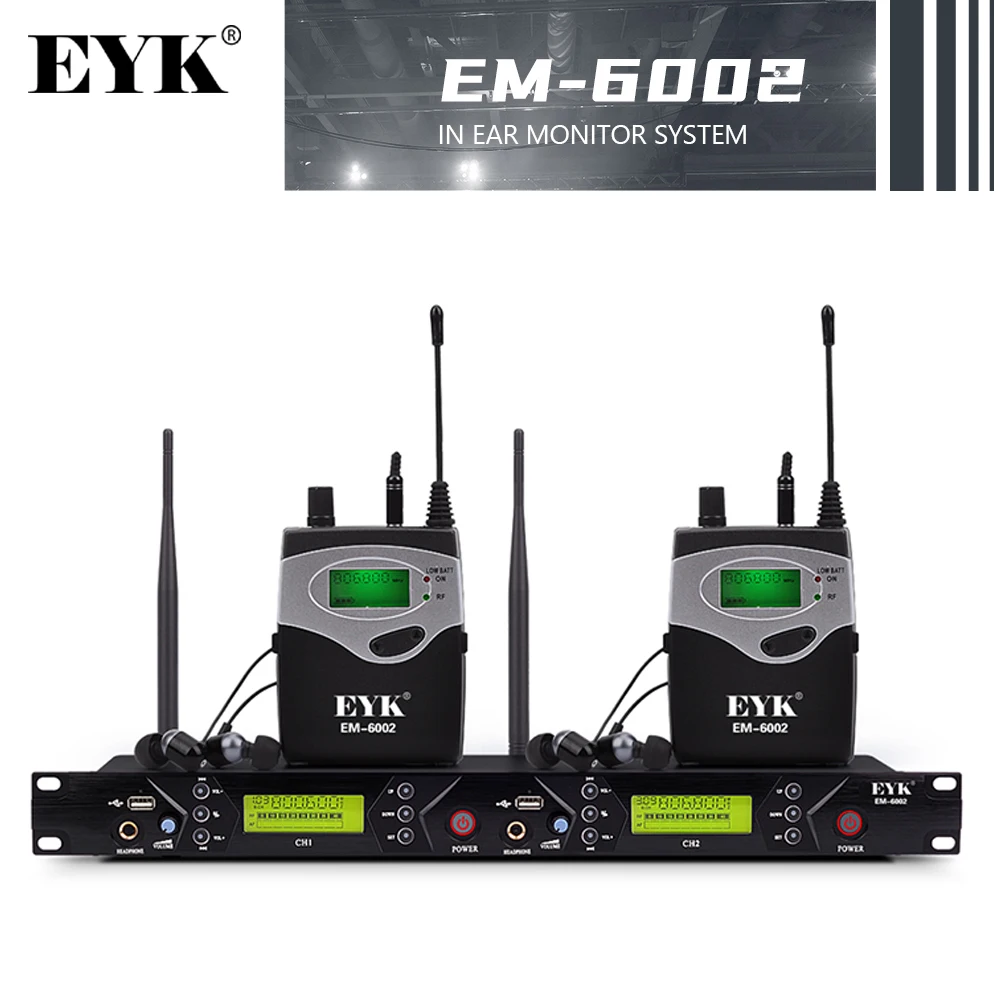

Dual Channel Wireless In Ear Monitoring System with 40 frequencies Selecable Perfect for Stage Professional
Description：
This wireless Ear-monitor system is used in stage performance and sound broadcast which can replace traditional complex sound monitoring equipment, achieve admirable listening effect With using the latest high frequency transmission and audio signal dynamic processing technology, also improve the signal-to-noise ratio of the dynamic range so that the system has the best anti-interference to show the perfect original sound again.
Key Point：
1. UHF band Phase lock PLL design, In the 32MHz frequency band, the preset 40 frequencies can be switched at will. Frequencies : 572-603.5 MHz Frequencies
2. Transmitter front：Metal Box, USB interface, 6.35mm Earphone socket, Earphone volume knob, USB function key, LCD screen, Transmitter setting key, Power switch
3. Transmitter back：Power interface, Audio input(Right and Left), Gain setting(Right and Left), Antenna interface
4. Receiver：Power switch/Volume knob, 3.5mm Stereo earphone socket, LCD screen, Low-battery indicator lamp, RF receiving indicator lamp, Receiver function key
5. One channel of transmitter can connect Unlimited receivers
6. Range: up to 260 feet (up to 80 meters)
7. Receiver battery: 4*1.5V AA(not included)
Packing list:
1. Transmitter 1pc
2. Bodypack receiver(with earphone) 2pcs
3. Power adapter 1pc
4. Audio cable 4pcs
5. Antenna 2pcs
5. User manual 1pc
6. Ear hook 2pcs
7. 1.5V Battery Needed 4pcs (Please note: Due to transportation reasons, the battery is not issued with the goods, please purchase by yourself, thanks!)

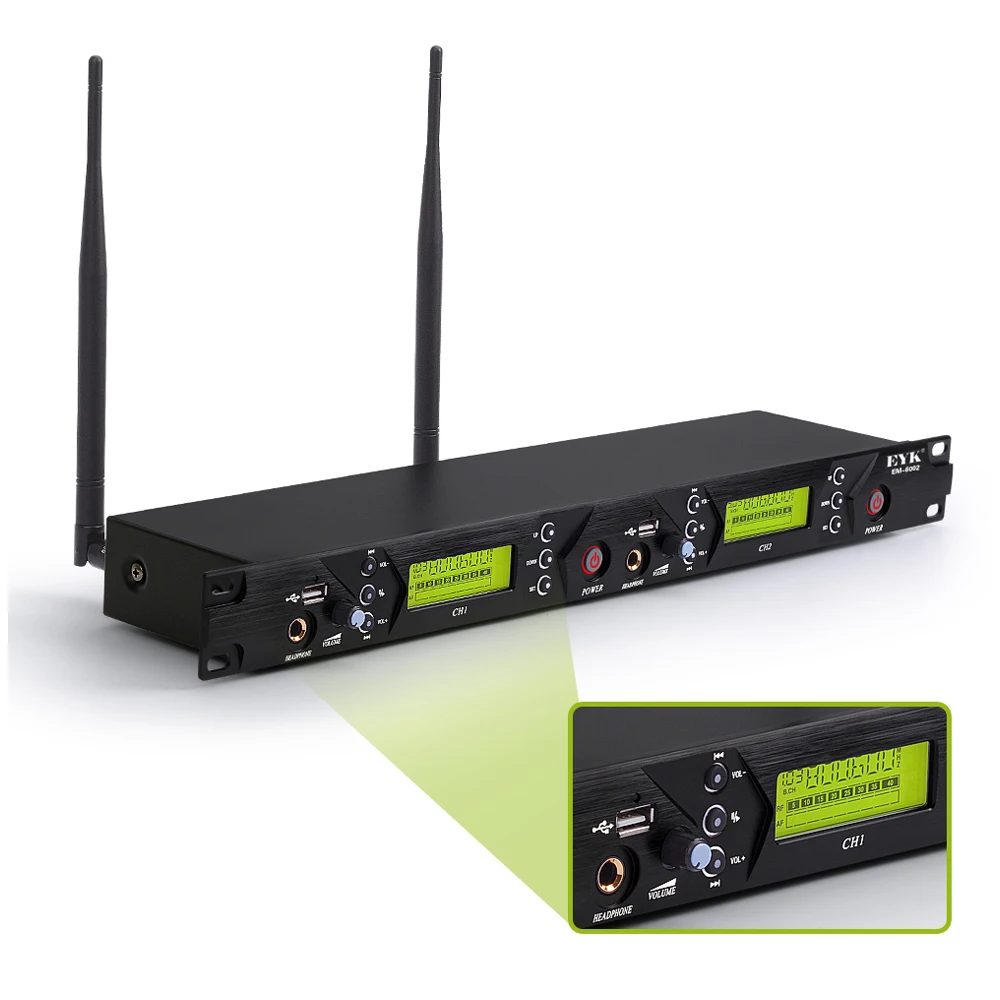

Transmitter front panel function:
1.Power switch: Long press POWER button → Turn ON/Turn OFF
2.Transmitter setting key:
1) Group selection:
a. Press 1דSET” button
b. Press "UP" or "Down" button to choose the group
2) Channel selection:
a. Press 2דSET”button
b. Press "UP" or "Down" button to choose the Channel
c. Press “SET” button to confirm
3.USB interface: Devices with USB playback can be used
4.USB function key: Previous song, Play/Pause, Next song
5.HEADPHONE Socket：Connect a 6.35mm headphone
6.VOLUME：Rotate the volume knob to adjust the volume of the headphone
7. LCD Screen：
1 ) As shown：Group：1 Channel：3 Frequency Point：800.6MHz
2 ) RF Signal
when the Transmitter is on "working" status, there is RF signal.
3 ) AF Signal
when the Transmitter is on "working" status,
a) Receiver pick up the sound, there is AF signal
b) no sound is picked up, no AF signal.

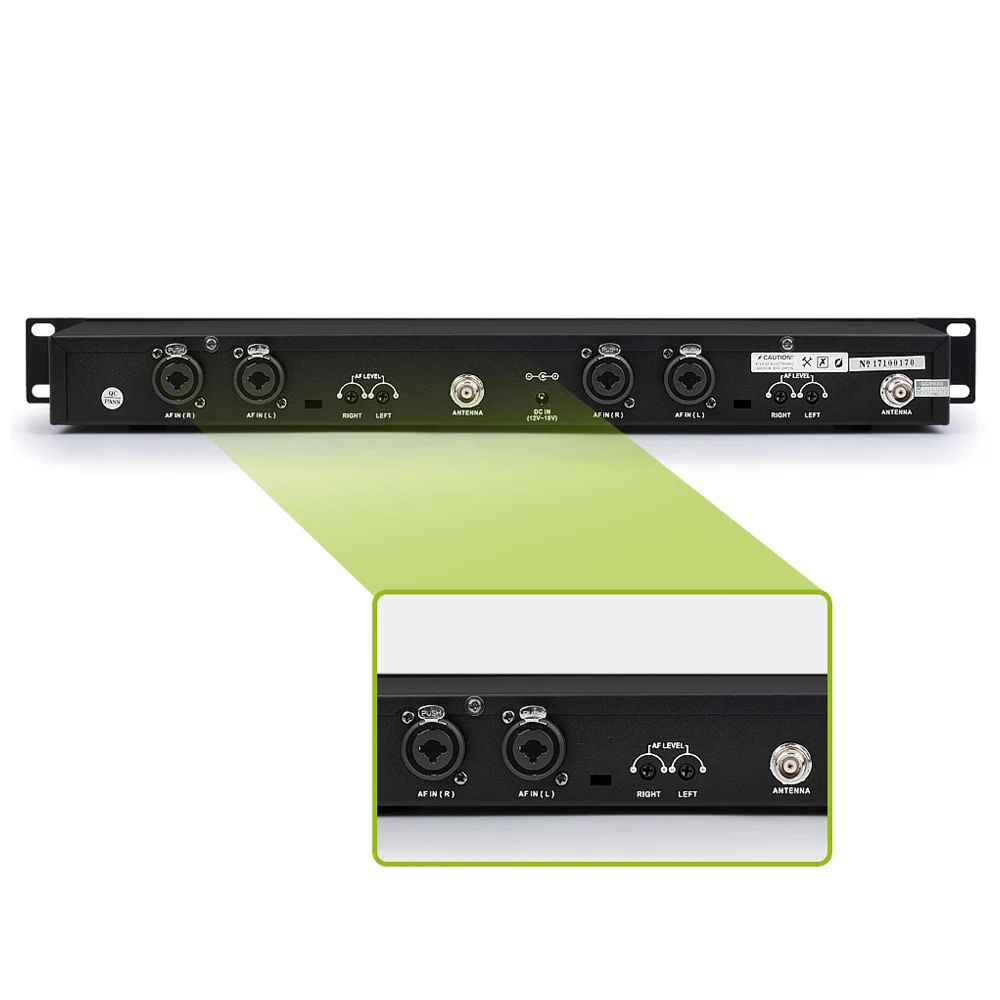

Transmitter back panel function:
1. Power interface：Connect the power adapter to transmitter power socket, then connect the power adapter to 110V or 220V power.
2. Audio input(Right and Left): XLR and 6.3mm Combined input
3. Gain setting(Right and Left): Right channel potentiometer and Left channel potentiometer
4. Antenna interface

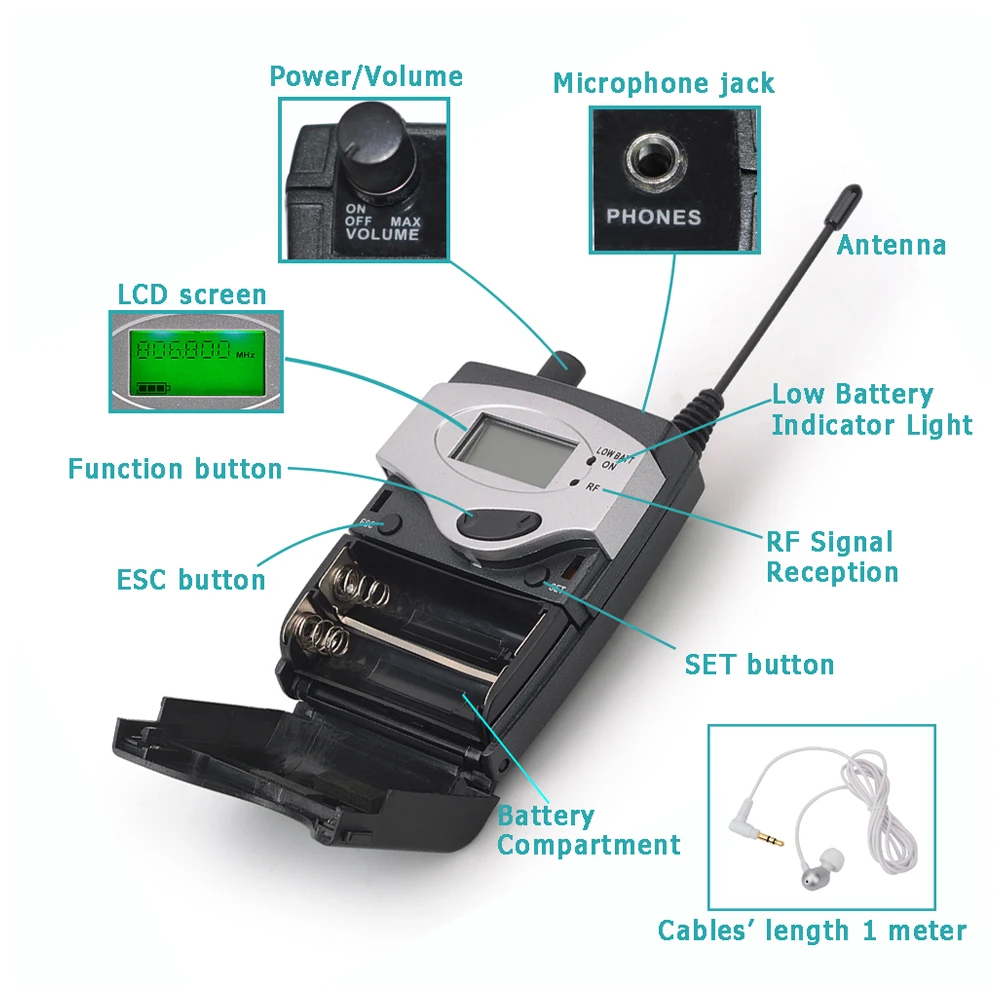

Receiver:
1. High Quality Antenna
2. Low Battery Indicator Light The light will be Red color when battery is low
3. RF Signal Reception Light
4. Plastic Material

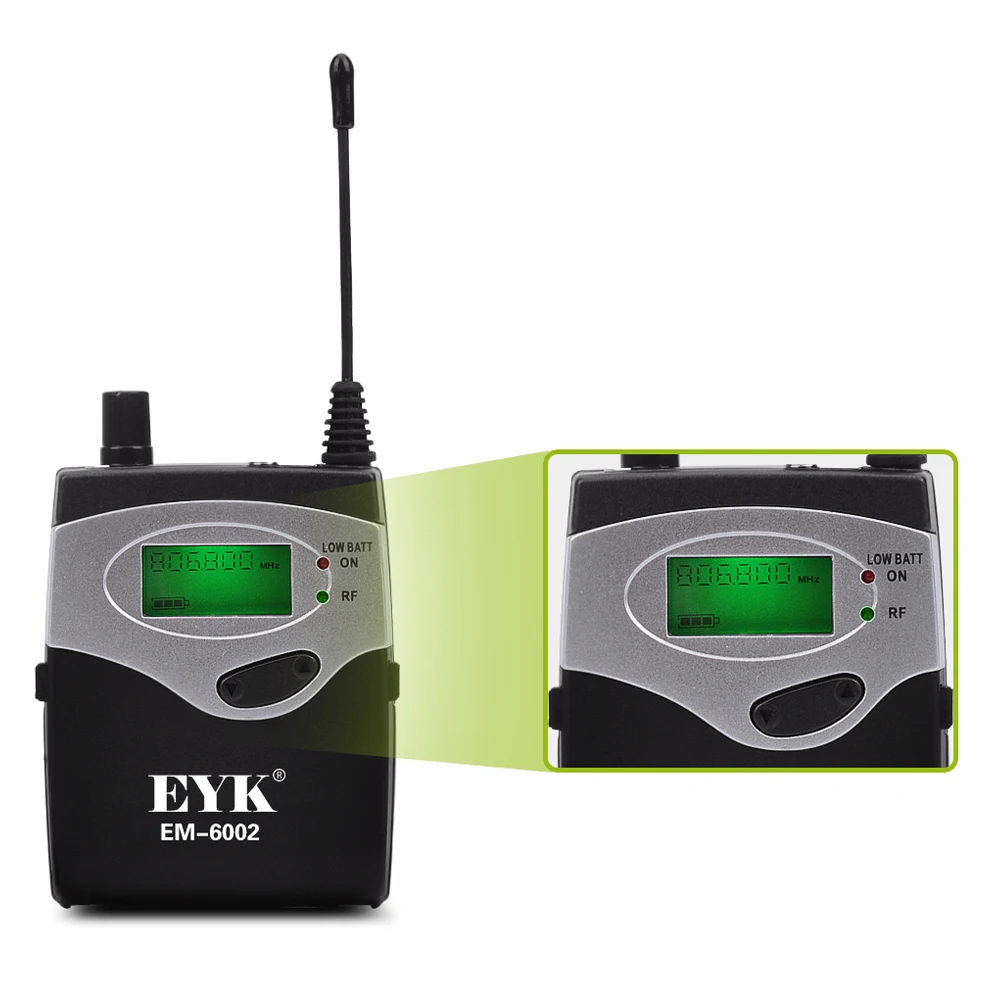

LCD Screen:
5. Frequency Point
6. Battery power Display
The Top of Receiver:

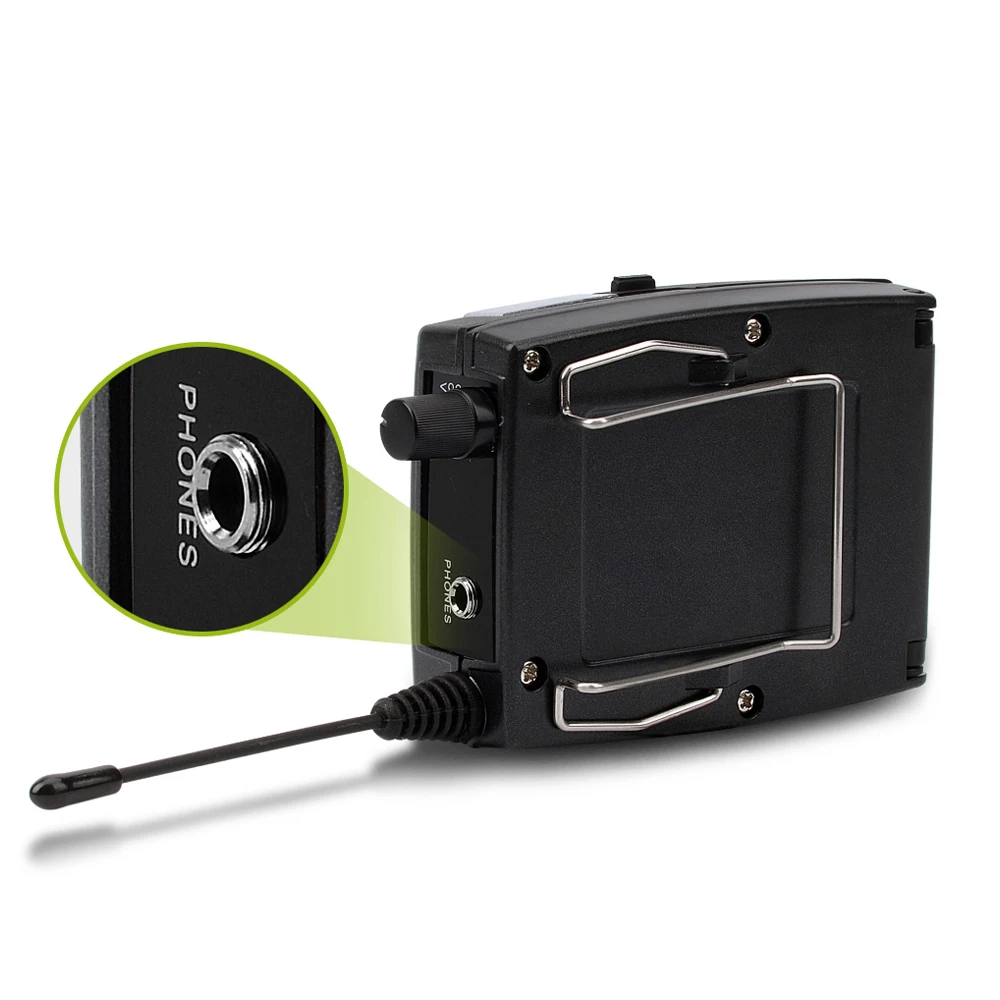

7. 3.5mm Stereo earphone output socket
8. Power Switch and Volume control
1. Power Switch：
1）clockwise rotate the knob → ON
2）anticlockwise rotate the knob → OFF
2. Volume control
1) clockwise: volume from low to high 2) anticlockwise: volume from high to low
Other Function Buttons:
9. Battery Compartment: 2*1.5V AA Battery Needed (not included)
10. Receiver Setting Key
1) Group selection:
a. Press 1דSET” button
b. Press "UP" or "Down" button to choose the group
c. Press “ESC” button to confirm
2) Channel selection:
a. Press 2דSET”button
b. Press "UP" or "Down" button to choose the Channel
c. Press “ESC” button to confirm
The Length of Headset and Lapel Mic:
11. Cables’ Length of Headset and Lapel Mic：1 meter
Parameter:
Transmitter:
Case specification: Standard 0.5 U
Case material: metal main body and panel
Oscillation mode: PLL synthesized
Frequency stability: ±0.005%
Frequency range: UHF572-603.5MHz
Frequency interval:32MHz
Preset channel: 40 channels separately set 4 groups
Operate mode: manual adjust
Max Deviation:±48KHz
Frequency response: 50Hz~15KHz±3dB
Transmitter output power: 100mW(50Ω)
Harmonic radiation:＜4NW
AF input: XLR, 6.3mmφjack
Earphone output: 6.3mmφstereophonic socket
Earphone load impedance:≥16Ω
Current consumption:DC 12V/250mA
Antenna socket: BNC socket
Receiver:
Oscillation mode:PLL Synthesized
Frequency stability: ±0.005%
Frenquency range: UHF572-603.5MHz/798-830MHz
Frequency interval:32MHz
Preset channel:40 channels separately set 4 groups
Operate mode:manual adjust
Receiving mode:single tuning
Sensitivity:deviation 25 khz,with conecting 7dBuV,S/N＞78dB
Max Deviation:±48KHz
Comprehensive S/N radio:> (1KHZ-A)
Comprehensive T.H.D: <3%@1KHz
Comprehensive Reaponse::50Hz~15KHz±3dB
Output power:(32Ω)2x35mw@1KHz
Earphone load impedance:≥16Ω
Output socket: 3.5mmφ stereo earphone socket
Volume output adjusts: adjust when using
Power box :batteries AAX2
Current drain:3V/120mA(Under the mediant degrees of the volume control)
Product Size:
Receiver:
Width: 480mm
Length: 100mm
Height: 45mm
Transmitter:
Width: 65mm
Length: 25mm
Height: 80mm
Kindly note:
1. We have Four Power adapter Options :
1) EU Plug
2) US Plug
2. Please confirm the frequency is ok for you.
If you need other frequency, please tell us before you order.
